Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

Product Categories
Hebei Standard Filter Equipment Co.,Ltd
Contact Now

Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

  • 1
  • 2

Brand Name : STD Filter

Model Number : STD SBS-017

Certification : CE , ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : $50-500 /pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1 pcs per day,

Delivery Time : 7 days or customized time

Packaging Details : plastic in wooden package or standard export package

shape : ,round,customized,curved

Length : up to 2 meter or customized

diameter : 1 meter or customized

Slot size : 0.1-6.0 mm,customized to 0.02 mm

Type : Filter Element

Usage : screening,

Color : SS silver

Material : Stainless Steel

Application : filter

Advantage : Directly from factory

Filter rating : 99%

Width : up to 1 meter ,customized.

Feature : high resistance corrosion,easy to clean and backwashing

Hole shape : rectangle

Contact Now

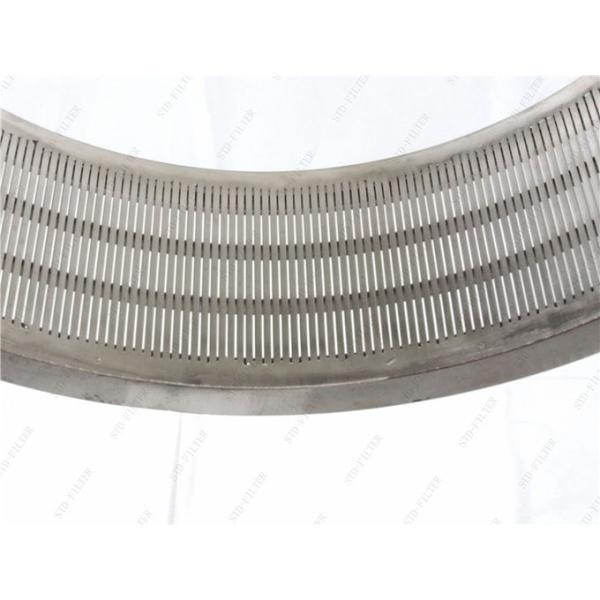

Stainless Steel 0.1mm 0.4mm 0.6mm Customized Shape Sieve Bend Screen For Grain Industry

Materials:

The Sieve Bend Screen is also called at wedge wire screen and V-profile wire screen.Currently, wedge wire screen panels are widely used in the industry, agriculture, construction, brewing, greening and grain screening industries.When storing grains, impurities such as debris, pebbles, and particles may be mixed in. We can determine the slot size of the wedge wire screen panel according to the size of the grain to screen the impurities out and ensure the cleanliness of the grain.

As the special structure,it is more high rigidity and can withstand the higher strength and more heavy load than perforated mesh.

Nominal Diameter (in)

 ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Characteristic:

1. Stainless Steel material ,resistance to corrosion and abration

2.Special structure,more high strength and support the hole

3.Less maintance time and cost

4.More longer service time

5.High precision slot.

6.Customized shapes and slot,can make your work more easily

Application:

1.Mining.

2.Coal

3.Oil

4.Chemical

5Environmental protection

6.Liquid and air filtration

Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

The details:

Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For GrainAnti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For GrainAnti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

Packages:

Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

The delivery:

Anti Corrosion Stainless Steel 304 0.4mm Hydro Sieve For Grain

Please Meet us on The http://www.wedgefilter.com,we will give you sincere sevice and an unbeatable price.
