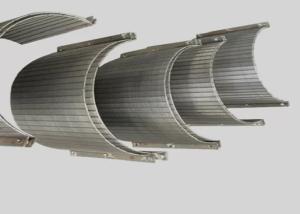

99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

  • 1
  • 2

Brand Name : STD Filter

Model Number : STD SBS-016

Certification : CE，ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : $50-500 /pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1 pcs per day,

Delivery Time : 7 days or customized time

Packaging Details : plastic in wooden package or standard export package

shape : round,customized,curved

Length : up to 2 meter or customized

diameter : 1 meter or customized

Slot size : 0.1-6.0 mm,customized to 0.02 mm

Type : Filter Element

Usage : liquid Filtration

Color : SS silver

Material : Stainless Steel

Application : petroleum,oil

Advantage : Directly from factory

Filter rating : 99%

Width : up to 1 meter ,customized.

Feature : high resistance corrosion,easy to clean and backwashing

Hole shape : rectangle

Contact Now

Stainless Steel 0.1mm 0.4mm 0.6mm Customized Shape Sieve Bend Screen For Oil And Petroleum Exploitation

Materials:

The Sieve Bend Screen is also called at wedge wire screen and V-profile wire screen.It is a special filter.It is very high rigidity and bears the high strength.The structure of the sieve bend screen is special.It includes two parts:V-profile wire is screwed and welded on the support rods.The rods is rectangle or round.They are welded together at cross angles.This can be more strong.

The petroleum exploitation is a worse environment.The special structure of the sieve bend screen may be is the best choice.It is not only can be the filter,but also can be the support wall as the well or something.It can give you a better work time,because of the sieve bend screen costs less time to be maintained and cost.

It is nearly all of the surface is working face.it is more efficient.

Nominal Diameter (in)

 ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Characteristic:

1. Stainless Steel material ,resistance to corrosion and abration

2.Special structure,more high strength and support the hole

3.Less maintance time and cost

4.More longer service time

5.High precision slot.

6.Customized shapes and slot,can make your work more easily

Application:

1.Mining.

2.Coal

3.Oil

4.Chemical

5Environmental protection

6.Liquid and air filtration

99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

The details:


99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

Packages:

99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

The delivery:

99% 0.1mm Wedge Wire Sieve Bend Screen For Petroleum Exploitation

Please Meet us on The http://www.wedgefilter.com,we will give you sincere sevice and an unbeatable price.
